品牌：Master

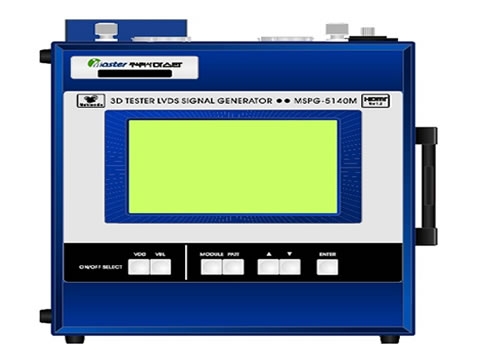

3D LVDS信号发生器( 带有高清媒体播放器 & 3D视频格式输出 )
产品特点
特点
#支持最大500MHz像素点频率
#高清媒体播放器支持薄膜式（FPR）和快门式（Shutter Glass)3D输出
MSPG-5140M输出LVDS格式信号。MSPG-5140M能够支持最大500MHz的像素点频率，拥有触摸操作的图形液晶屏。MSPG-5140M可通过USB接口进行轻松的升级和调整。MSPG-5140M 可为LCD屏的背光供电。并且能够进行DC电压控制（0V ~ 27V），以0.1V为步进单位。
MSPG-5140M支持50幅以位图格式的图片（图片尺寸4096 x 2048 ）存储，并轻松的下载和变更测试图片的显示。
MSPG-5140M 支持高清多媒体播放器功能,在TFT-LCD生产检查3D显示，视频测试，像素错误，检视等。
#图片格式(BMP, JPG, PNG) 4096x2048 50 幅
#1920 x 1080p 50/60Hz/100/120Hz 3D 视频格式
#由PC蓝光播放器等外部接口的HDMI信号转换成LVDS信号。HDMI 接口版本V 1.3
#背光电压(VBL)/T-com 板(VDD) 电压+0.1V
#红外线发射器连接
#支持USB2.0的存储设备和SSD SATA型的硬盘存储介质
#LVDS输出接口类型易更换和修理
#色彩数据支持6,8,10比特
#可以用PC控制仪器
#用户可控制主/从，奇偶数据
#可控的PVCOM
技术参数
| 规格参数( 信号源部分 ) | |
| Pixel Clock | Single Link: 25MHz ~ 100MHz |
| Dual Link : 50MHz ~ 250MHz | |
| Quad Link : 100MHz ~ 500MHz ( Bitmap: 130MHz ~ 460MHz ) | |
| LVDS Output | Output Port: Master, Slave 2Port( 50P-3M Connector ) |
| Format : Vesa, Jeida, Non Jeida | |
| Bit Rate : 6 / 8 / 10Bit | |
| 3D Format | Side by Side( Half ), Top & Bottom, Frame Packing( up to 720P ) |
| Frame Sequential(up to 1080P ) | |
| 3D Mode | Shutter Glass Type( 3D Shutter Glass Type ) |
| FPR Type( Film Patterned Retarder Type ) | |
| IR Emitter Connector ( Min_Din 3P ) | |
| Data Storage Device | Timing: 999 Timing( User: 1~500, Default: 501~999 ) |
| Pattern: 999 Pattern( User: 1~500, Default: 501~999 ) | |
| Scan & Function Group | Scan Storage: 99 Group( 1 Group: 24 Step ) |
| Function Storage: 99 Group( 1 Group: 32 Step ) | |
| Others | Resolution: 4096 x 2048 Bitmap Image Size |
| User Interface: * Touchscreen( Graphic LCD: 800x480 ) * USB, Rs-232C, LAN, PC GUI, Remote Controller | |
| Dimension (W x D x H) | 260(width) x 290(length) x 151(high) mm |
| Weight: 6.5 Kg | |
| 规格参数(多媒体播放器部分 ) | |
| Input | Hard Disk : SSD SATA Type, 32GB( Bitrate: Max 40Mbps ) |
| HDMI Port: * HDMI 1.3 Ver * 25~165MHz( TMDS Clock: 25~225MHz ) | |
| Pixel Clockck | Single Link: 25MHz ~ 75MHz |
| Dual Link : 50MHz ~ 150MHz | |
| Quad Link : 297MHz ( Fixed ) | |
| LVDS Output | Output Port : Master, Slave 2Port( 50P-3M Connector ) |
| LVDS Format: VESA, JEIDA, NON JEIDA | |
| Bit Rate : 8 Bit | |
| 3D Format | Side by Side( Half ), Top & Bottom, Frame Packing( up to 720P ) |
| 3D Mode | Shutter Glass Type( 3D Shutter Glass Type ) |
| FPR Type( Film Patterned Retarder Type ) | |
| IR Emitter Connector ( Min_Din 3P ) | |
| Resolution | 1366x768( 50 / 60Hz ) |
| 1920x1080P( 50 / 60 / 100 / 120Hz ) | |
| Codec | Video: MPEG1, 2, 4( MPEG4 V2, WMV1, 2 is not support) / MJPEG / AVI / WMV / TP |
| Photo: BMP, JPEG, PNG | |
| 规格参数( 信号源部分 ) |
| 规格参数( SMPS开关模式电源部分 ) | |
| Input | 100~240VAC, 50 / 60Hz( 635W ) |
| VDD: DC 0~13V / Max 5A / 65W( 0.1V Unit Variable possibility ) | |
| Output | VBL: DC 0~27V / Max 20A / 540W( 0.1V Unit Variable possibility ) |
| PWM_Dimm support ( CLK: 50~20000Hz, DUTY: 0~100% ) | |
| A_Dimm: DC 0~10V / Max 3A / 30W( 0.1V Unit Variable possibility ) |
附件/配件
| 附件清单 | |||
| Item | Unit | EA | Note |
| Remote Control ( MSRC-007L ) | Set | 1 | Cable length : 2m |
| LVDS Cable | EA | 2 | Master(51P), Slave(41P) |
| Back Light Power Cable | EA | 2 | TV(14P) & Monitor(12P) Type |
| Hard Case | EA | 1 | |
| AC 220V Power Cable | EA | 1 | |
| CD Manual | EA | 1 |
ACCESSORY LIST of MSPG-5140M | |||
No | Product Picture | Description | |
1 |
 | Item | REMOTE CONTROL |
Model Name | MSRC-007L | ||
Quantity | 1EA | ||
Size(mm) | 110 x 198 x 25.5 | ||
Note | To Equipment Control (including cable) | ||
2
|
 | Item | LVDS SLOT BOARD |
Model Name | MSLB-001 | ||
Quantity | 1EA | ||
Size(mm) | 211 x 22 x 62 | ||
Note | -LVDS Output Slot Board -To repair interchangeable easily | ||
3 |
| Item | HARD CASE |
Model Name | MSHC-001 | ||
Quantity | 1EA | ||
Size(mm) | 485 x 222 x 340 | ||
Note | Equipment storage | ||
ACCESSORY LIST of MSPG-5140M | |||
No | Product Picture | Description | |
4 |
| Item | LVDS CABLE |
Model Name | MSLC-001 | ||
Quantity | 1EA | ||
Length | 1,200mm | ||
Note | -FHD 60/120Hz Master Cable -Normal or FPR Type -50P to 51p | ||
5
|
| Item | LVDS CABLE |
Model Name | MSLC-002 | ||
Quantity | 1EA | ||
Length | 1,200mm | ||
Note | -FHD 120Hz Slave Cable -Normal or FPR Type -50P to 41p | ||
6 |
| Item | LVDS CABLE |
Model Name | MSLC-003 | ||
Quantity | 1EA | ||
Length | 1,200mm | ||
Note | -FHD 60/120Hz Master Cable -Shutter Glass Type -50P to 51p | ||
ACCESSORY LIST of MSPG-5140M | |||
No | Product Picture | Description | |
7 |
| Item | LVDS GENDER CABLE |
Model Name | MSLC-004 | ||
Quantity | 1EA | ||
Length | 500mm | ||
Note | -HD/FHD Master Cable -Separate type C/N -50p to 50p | ||
8
|
| Item | LVDS GENDER CABLE |
Model Name | MSLC-005 | ||
Quantity | 1EA | ||
Length | 500mm | ||
Note | -HD/FHD Slave Cable -Separate type C/N -50p to 34p | ||
9 |
| Item | LVDS CABLE |
Model Name | MSLC-006 | ||
Quantity | 1EA | ||
Length | 1,200mm | ||
Note | -HD-TV Type -50p to 30p | ||
ACCESSORY LIST of MSPG-5140M | |||
No | Product Picture | Description | |
10 |
| Item | LVDS CABLE |
Model Name | MSLC-007 | ||
Quantity | 1EA | ||
Length | 1,200mm | ||
Note | -FHD Monitor Type -50p to 30p | ||
11
|
| Item | LVDS CABLE |
Model Name | MSLC-008 | ||
Quantity | 1EA | ||
Length | 1,200mm | ||
Note | -HD Monitor Type -50p to 30p | ||
12 |
| Item | SMPS CABLE |
Model Name | MSSC-009 | ||
Quantity | 1EA | ||
Length | 1,200mm | ||
Note | -Back Light Power Cable -TV or Monitor Common Use -16p to 14p(Male/Female) | ||
